COMET AG Model MXR-180 UL X-ray Tube Type 915350.V01 XRAY 180KV SWITZERLAND

$ 3,250.00
    DESCRIPTION

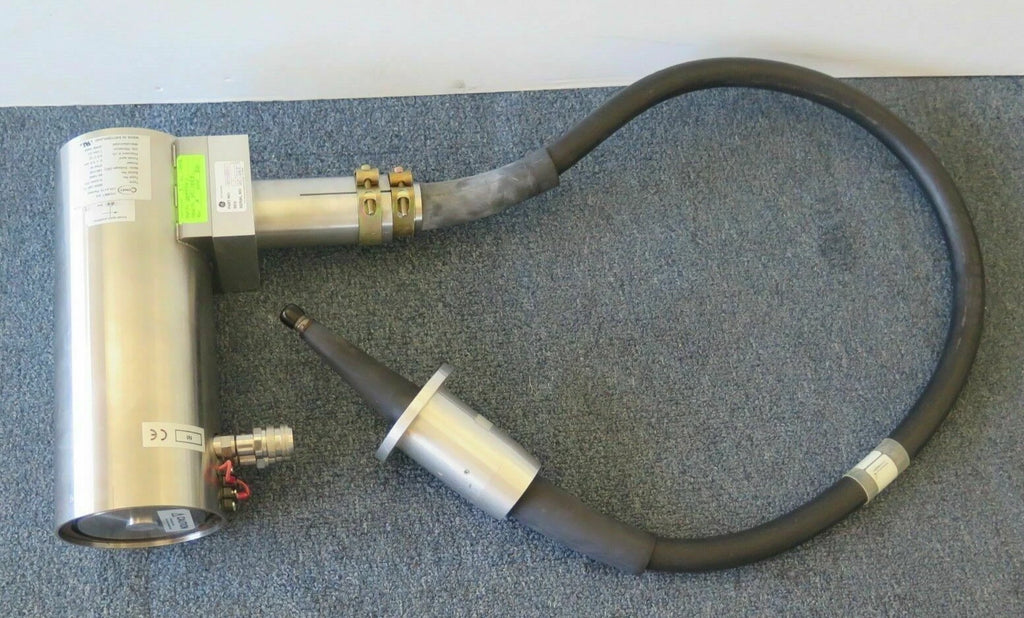

    X-Ray tube COMET AG Model MXR-180 UL Type 915350.V01 XRAY 180KV

    Made in SWITZERLAND

    This Unit is New but old Stock

    If you need this item to be shipped please contact us before bidding 8o5-24o-1638

    The COMET Unipolar Metal Ceramic tubes are designed for use in demanding industrial applications like Non-Destructive Testing, Food Inspection and Thickness Gauging.  The tube assembly consists of an Unipolar X-Ray tube with cooled anode at ground potential and a high voltage receptacle socket.  The X-Ray proof tube housing has fittings for water hose connections.


    SPECIFICATIONS

    Nominal tube voltage:  180 kV
    Continuous rating: 2700 W
    Focal spot acc. EN 12543: d = 3.5 mm
    Filament current, max.: 4.6 A
    Filament voltage, typical :7.5 V
    Inherent filtration: 1.0 mm Cu
    Target material: W
    Target angle: 20°
    Radiation coverage: 85° x 14°°
    Cooling medium: Water
    Cooling medium flow, min.: 2 l/min
    Temperature at inlet, max.: 50° C
    Weight: 29kg
    Terminal type: R28

    \
