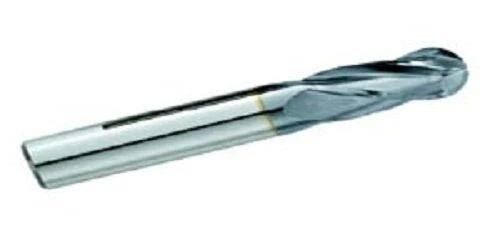

GARR Tool 18174 4 Flute 9/32" End Mill Tialn Ball Nose Solid Carbide 330MC
Series 330MC EDP# 18174
9/32" BALL EM 4FL SE SMG*TiCN*
Solid submicron grain carbide end mill - center cutting
30 degree helix - rhs/rhc
Improved lubricity and abrasion resistance
Up to 25% faster than uncoated
Ball radius tolerance +.000"-.001" (+.000-.025mm)
flute dia. +.000-.002" (+.000-.050mm)
3mm - 6mm shank dia. +.0000-.0003" (-0.0000-0.0075mm)
1/4" - 1" shank dia. -.0001-.0004" (-0.0025-0.0100mm)
Edp # Flutes Flute Dia. Flute Length Shank Dia. Neck Dia.
18174 4 0.2812 0.875 0.3125 0.0
Overall Length Reach Length (l.b.s.) Neck Length Behind Flutes Corner Radius End Type Flat? Weight (lbs)
2.5 0.0 0.0 0.0 BALL N 0.08
Please see pictures for additional details.
